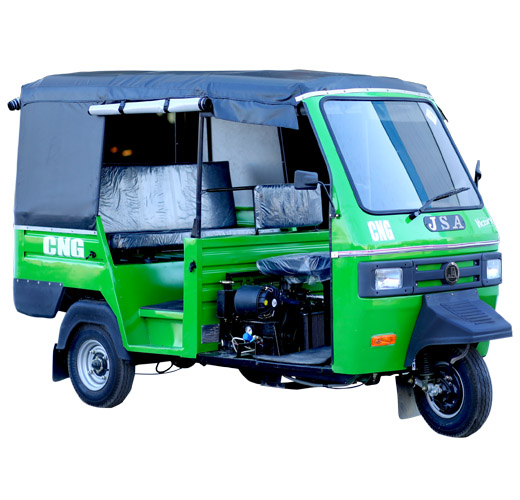

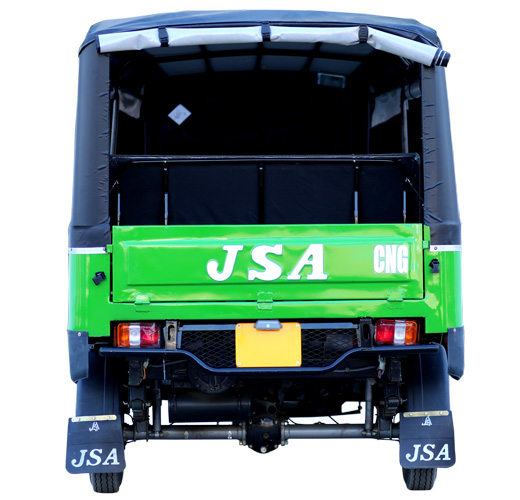

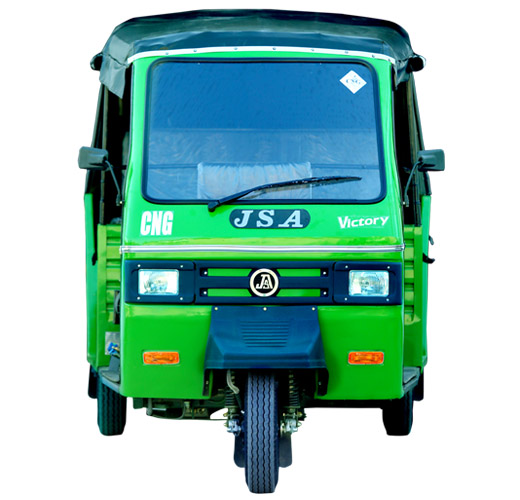

JSA Victory CNG Passenger Carrier

Technical Specifications
Dimension
Wheel Base1910 mm
Rear Wheel Track1240 mm
Min. Ground Clearance150 mm
Overall Length2865 mm
Overall Width1440 mm
Mass Weight
Gross Vehicle Weight1030 Kg.
Engine
TypeSingle Cylinder 4 Stroke, Water Cooled Euro-IV Greaves Gasoline Engine
Number of CylindersSingle
Bore86 mm
Stroke68 mm
Displacement395 cc
Max. Output6.7 KW @ 3600 RPM on CNG Gas
Max. Speed57+3 Km/hr.
Clutch & Gear Box
Gear BoxConstant Mesh 4 forward & 1 reverse
ClutchWet, Multiple Plate
Electrical
Starting SystemElectric Start
BatteryExide 12V, 55AH
HeadlightTwin with 12V 60/55W double filament bulb, along with parking
IndicatorTwin indicators in front and back with 21W build
Tail/Brake Light12V, 21/5W
Reversing Light12V, 21W
Registration Plate Light12V, 21W
Wheel & Suspension
Tyre Size: Front & Rear 4.5 x 10.8 Ply
FrontHydraulic telescopic shock absorber with coil spring
RearHydraulic telescopic shock absorber with leaf spring
Capacity
Fuel Tank7.25 Ltr.
Engine Oil1.75 Ltr.
Gear Oil2.0 Ltr.
Other Specifications
Fuel UsedCNG Gas
Average36+4 Km/kg on Gas (Under testing conditions)
BrakesAuto Adjusting Hydraulic
SteeringHandle Bar
Starting SystemElectric Start
