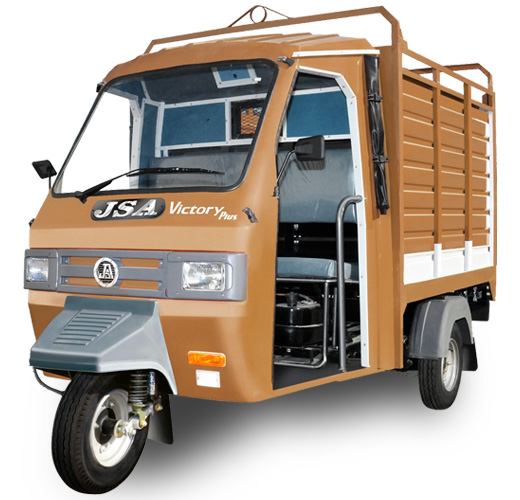

JSA Victory Plus Load Carrier

JSA Victory Plus Load Carrier

Product Enquiry

Enquire us about anything related to this product. We'll do our best to get back to you as soon as possible.

Max. Characters:
72/1000
Fields marked with * are mandatory.
Technical Specifications
TypeSingle cylinder greaves G435A III, 4 Stroke, Air Cooled Bharat-IV Diesel Engine
Number of cylindersSingle
Bore86 mm
Stroke77 mm
Compression Ratio19:1
Displacement436cc
Max. Power5.52Kw at 3600 RPM (7.4 H.P)
Max. Torque18 N/m
Clutch TypeMulti Disc, Wet Type
Gear Box TypeCoantant Mesh (4 Forward, 1 Reverse)
StreeingSteering Type
BrakesDrum brakes hydraulica;;y actuated internal expanding shoe type
FrontHydraulic telescopic shock absorber with coil spring
RearHydraulic telescopic shock absorber with leaf spring
Tyre Size4.50-10, 8PR (Cross Ply)
Tyre Pressures Front3.23 kg/cm2 46 PSI
Tyre Pressures Rear3.80 kg/cm2 54 PSI
Wheel Base1910 mm
Max. Length2865 mm
Max. Width1420 mm
Max. Height1755 mm
Wheel Track1240 mm
Min. Ground Clearance150 mm
System Voltage12V (DC)
Battery Rating50 AH
Gross Vehicle Weight1030 Kg
Fuel Tank7.25 ltr
Engine Oil1.75 ltr
Gear Oil2.0 ltr
Seating Capacity1 + 1
