JSA NV Passenger Auto Rickshaw

Technical Specifications
Engine
TypeSingle cylinder, Four stroke diesel engine
Displacement436cc
Max. Power8 bhp@3600rpm
Fuel Consumption36+/-4 km/ltr
Compression Ratio19:1
StartingElectric, Self start
CoolingForced air cooled
Max. Speed55 Km/hr.
Transmission
Gear Box4 Forward, 1 Reverse

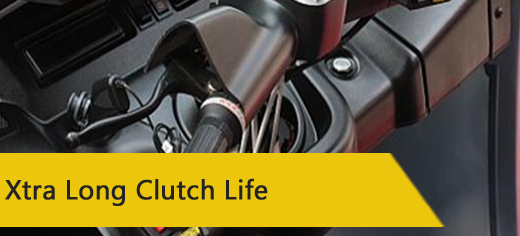

ClutchWet, Multi Disc Type
Maximum Gradability21%

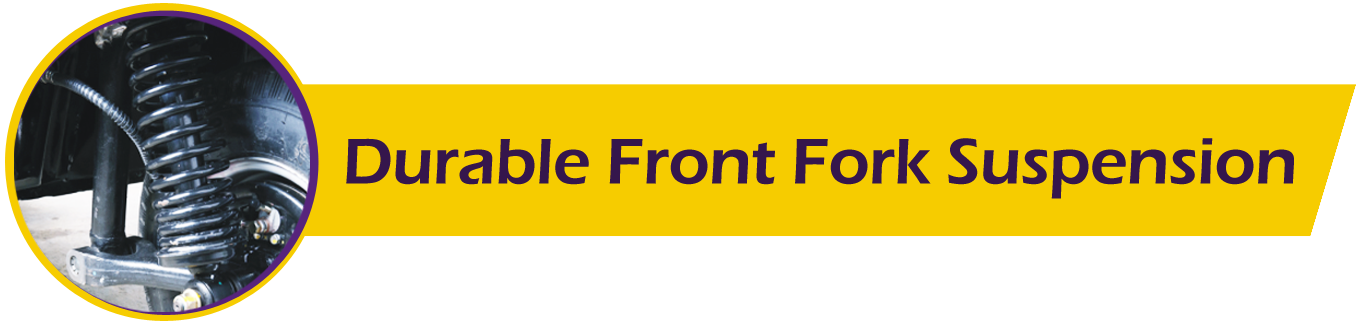

Suspension FrontLeading link, helical compression spring and hydraulic shock absorber
RearTriangular arm, rubber compression with hydraulic shock absorber
ChassisUniquely designed monocoque chassis stamped and welded with main central beam, cross member and two longitudinal beam.
Weight (kgs)Kerb weight 440 kgs gross weight 740 kgs
Tyres4.50”x10”, 8 PR (Spare wheel under driver's seat with lock)
SteeringHandle bar type
BrakesDual circuit hydraulic brakes, expansion type on all wheels with tandem master cylinder
Parking brakesMechanical type
Dimensions
Wheel Base1950 mm
Max. Length2950 mm
Max. Width1450 mm
Max. Height1800 mm
Turning Circle Radius2750 mm
Electricals
BatteryExide 12V, 50AH

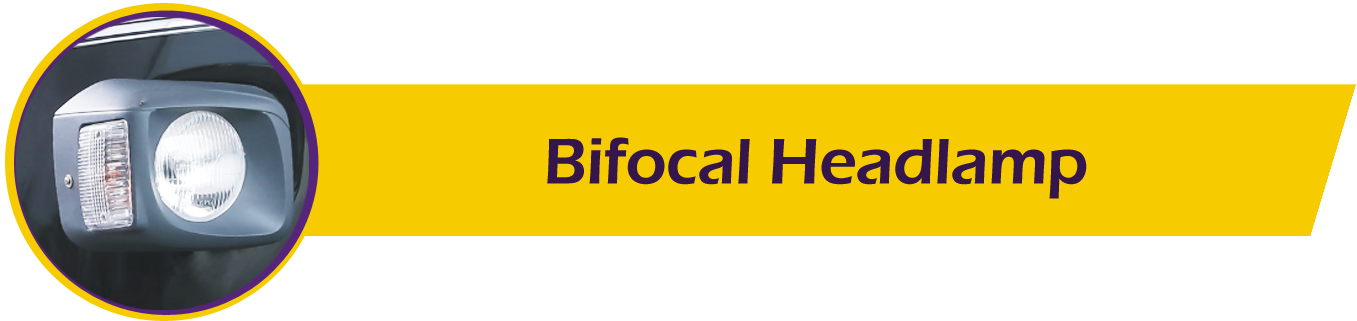

Head LampsTwin 35W/35W
Windscreen WiperSingle speed, monoblade, switch operated
Tail/Brake Light12V, 21/5W
Reversing Light12V, 21W
Registration Plate Light12V, 21W
Other Features
Fuel Tank10.25 ltr
Front WindscreenSingle piece
SafetyAnti theft lock, Stepney lock
MetersSpeedometer, Full gauge meter (E-1/2-F indication)
Standard AccessoriesJack, Glove box compartment fitments.
Extra Features
Bigger driver seat
Stronger driver seat back panel
Comfortable and integrated dashboard

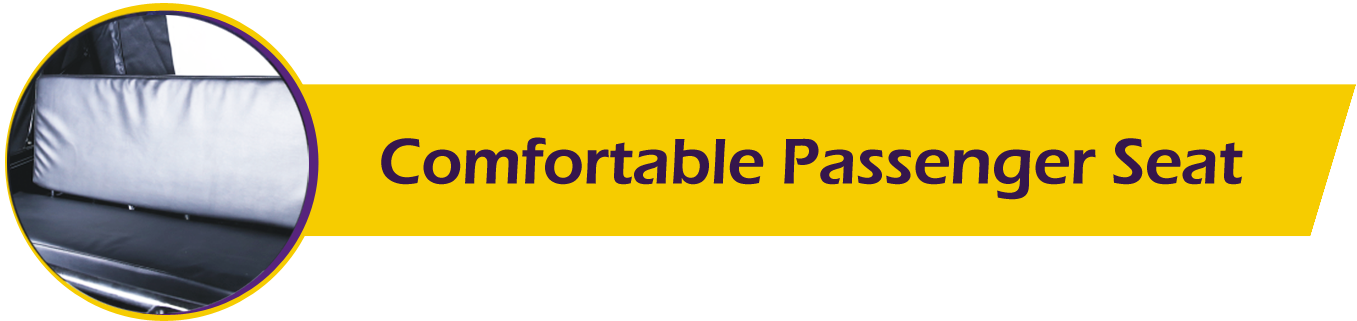

Stronger support to passenger seat

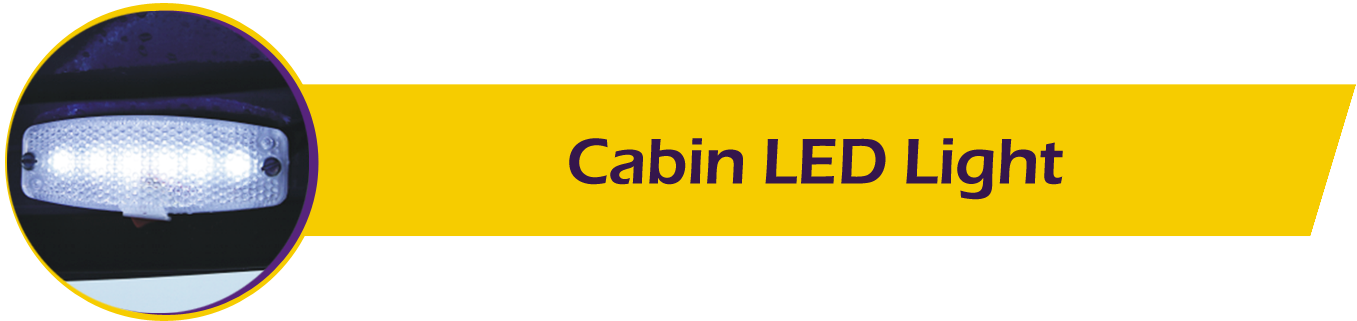

Light in passenger cabin
Improved soft top hood material.
