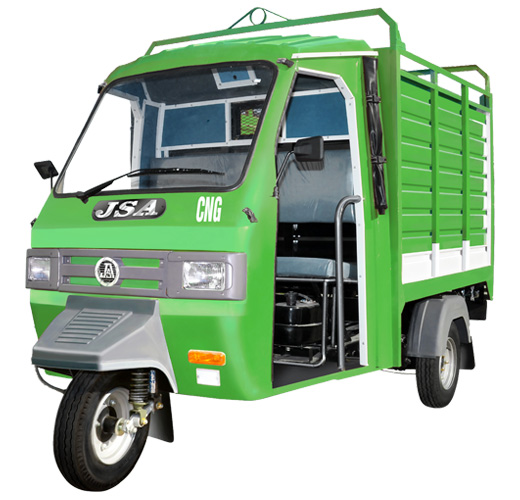

JSA Victory CNG Load Carrier

Fostered with immense years of industry experience and market understanding, we are manufacturing, exporting and supplying a wide gamut of CNG Load Carrier. The provided carrier is manufactured using premium quality components with several other material and the ultra modern technology by our dexterous technocrats at our sophisticated manufacturing unit. Offered carrier is appreciated in the world for its CNG facility replacing fuel that helps the user's work more in less expenditure. Furthermore, this CNG Load Carrier is made available in different specification at market leading prices.

Technical Specifications
Dimension
Wheel Base1910 mm
Wheel Track1240 mm
Min. Ground Clearance150 mm
Overall Length2865 mm
Overall Width1420 mm
Overall Height1755 mm
Mass Weight
Kerb Weight430 Kg.
GrossVehicle Weight995 Kg.
Seating Capacity1 + 1
Engine
TypeSingle cylinder greaves G400WG, 4-Stroke water cooled Bharat-IV Gasoline Engine
Number of CylindersSingle
Bore86 mm
Stroke68 mm
Cubic Capacity395 cc
Max. Output7.6 kw @ 3600 RPM on CNG Gas
Max. RPM3600
Clutch, Gear Box, Brakes & Steering
Gear BoxConstant Mesh 4 forward & 1 reverse gear
ClutchWet, Multi Plate
BrakesAuto adjusting hydraulic
SteeringHandle Bar
Electrical
BatteryExide 12V, 60AH
Sstarting SystemElectric Start
HeadlightTwin with 12, 60/55W double filament blub, along with parking
IndicatorTwin indication in front and back with 21W bulb
Tail/Brake Light12V, 21/5W
Reversing Light12V, 21W
Wheel & Suspension
Tyre Size: Front & Rear4.50x10, 8 Ply Cross Ply
Suspension Type
FrontHydraulic telescopic shock absorber with coil spring
RearHydraulic telescopic shock absorber with leaf spring
Capacity
Fuel Tank2.75 Ltr.
Fuel UsedCNG Gas
Average36+/-4 km.kg on gas (Under testing conditions)
