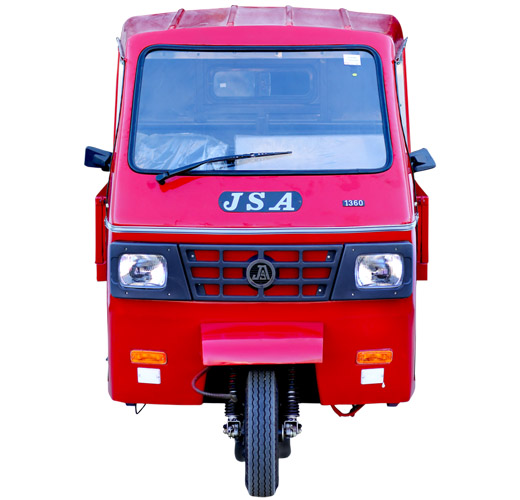

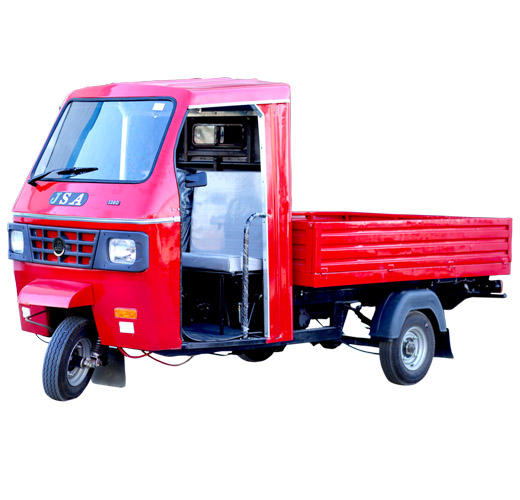

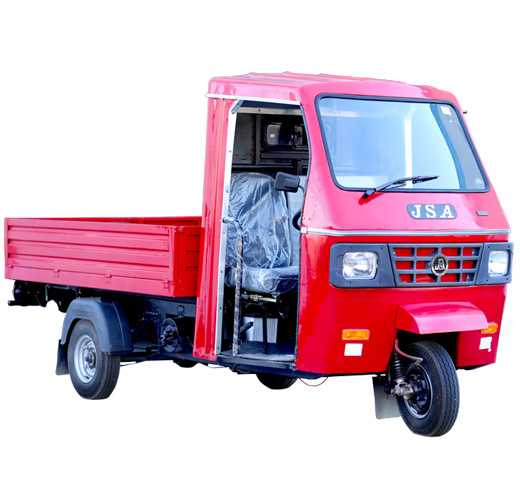

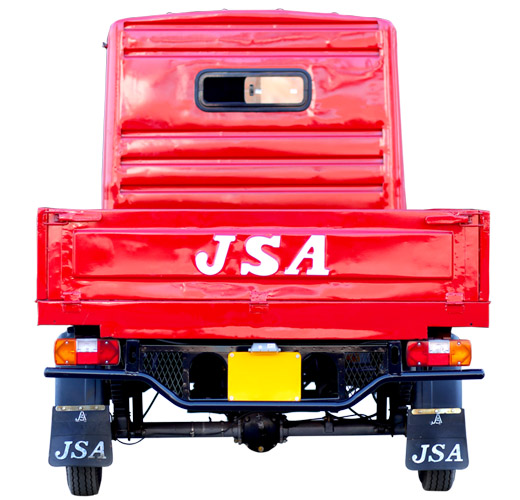

JSA 1360 D-IV Load Carrier

As an affluent manufacturer, exporter and supplier in this domain, we are instrumental in offering a high quality range of Load Carrier Auto. The provided auto is manufactured at our well-equipped manufacturing unit with the use of optimum quality components and the pioneering technology in line. The provided auto is basically used for carrying goods and services. It is a best means of transporting goods in short distances. Moreover, this Load Carrier Auto is made available in different specification at reasonable prices to the clients.

Technical Specifications
Dimension
Wheel Base2260 mm
Wheel Track1310 mm
Min. Ground Clearance150 mm
Overall Length3405 mm
Overall Width1500 mm
Overall Height1930 mm
Mass Weight
Kerb Weight550 Kg.
Gross Vehicle Weight1350 Kg.
Seating Capacity1 + 1
Engine
TypeSingle cylinder greaves G510AIII, 4 stroke, air cooled Bharat-IV Diesel Engine
Number of CylindersSingle
Bore85 mm
Stroke90 mm
Compression Ratio17.5:1
Cubic Capacity510 cc
Max. Power11 BHP @ 3000 RPM
Max. Torque27 Nm at 1800-2400 RPM
Clutch & Gear Box
Gear BoxConstant Mesh 4 forward & 1 reverse
ClutchDry, Single Plate
Electrical
BatteryExide 12V, 60AH
Alternator12V, 43Amp
Headlight12V, 40/45W
Turn Signal Light12V, 21W
Tail/Brake Light12V, 21/5W
Registration Plate Light12V, 5W
Reversing Light12V, 21W
Wheel & Suspension
Tyre Size: Front & Rear4.50x10, 8 Ply Cross Ply
Tyre Pressures Front3.23 kg/cm2 46 PSI
Tyre Pressure Rear3.80 kg/cm2 54 PSI
Suspension Type
FrontHydraulic telescopic shock absorber with coil spring
RearHydraulic telescopic shock absorber with leaf spring
Capacity
Fuel Tank10.25 Ltr.
Engine Oil1.75 Ltr.
Gear Oil1.5 Ltr.
Other Features
Strong rectangular tublar ladder type chassis to carry more weight
43Amp alternator to provide continuos charging for trouble free starting
Equipped with poweful headlight for trouble free driving in the night.
Adjustable bucket seat gives more comfort and tireless journey to drive.
Dual hydrollic brakes for better braking.
Engine mounted on hydra mount to give less vibration.
Bigger wheel track to provide balance.
