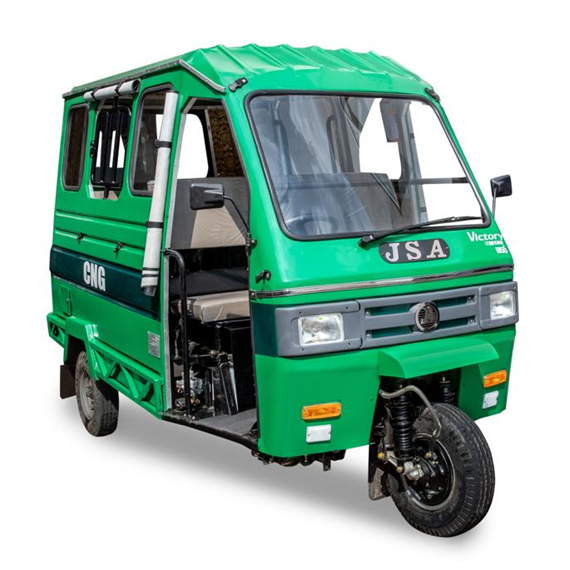

JSA Victory Plus CNG Passenger

JSA Victory Plus CNG Passenger

Product Enquiry

Enquire us about anything related to this product. We'll do our best to get back to you as soon as possible.

Max. Characters:
72/1000
Fields marked with * are mandatory.

Backed by technologically advanced manufacturing unit, we have been able to manufacture, export and supply our clients a qualitative range of three wheelers that is a common means of public transportation in many countries. It is a usually three-wheeled cabin cycle for private use and as a vehicle for hire. This rickshaw is an essential form of urban transport in many developing countries and a form of novelty transport in many developed countries. The provided three wheeler is manufactured by our experts using fine grade components and ultra modern technology. Furthermore, this three wheeler is made available in different specification at economical prices.

Technical Specifications
TSF Victory Plus CNG Pass
Emission Standards BS-VI
Seating Capacity 6+1
Brakes Drum
Suspension Front: Coil Spring; Rear: Leaf Spring
Driving Mode Offset Steering
Battery Lead Acid 12 V
Starting System Electric Push Button
Fuel Used CNG
Average 36(±3)Kmpl
Fuel Tank Capacity 40 Ltr. Water Capacity
Engine Type G 400 W VI CNG
Bore 86
Stroke 68
Cubic Capacity 395
Max Output 7.25 Kw
Max RPM 3400 RPM
Max Speed 57 Kmph
Gear Box Constant Mesh
Clutch Dry Type (Diaphragm)
Kerb Weight 563 Kg
Gross Vehicle Weight 1088 Kg
Min. Ground Clearness 150 mm
Wheel base 2155 mm
Rear Wheel Track 1250 mm
Overall Length 3140 mm
Overall Width 1437 mm
Overall Height 1971 mm
