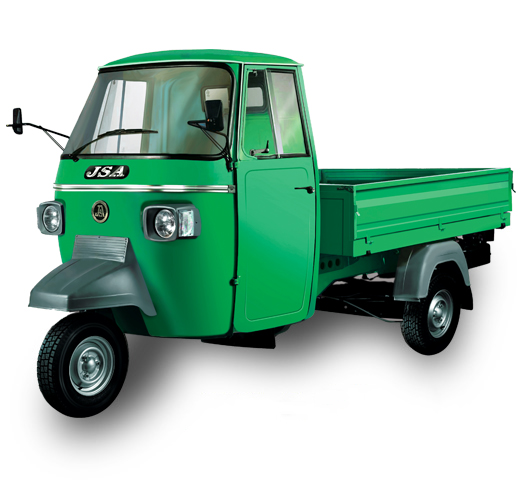

JSA NV CNG BS-VI

JSA NV CNG BS-VI Three Wheeler Loader

Product Enquiry

Enquire us about anything related to this product. We'll do our best to get back to you as soon as possible.

Max. Characters:
72/1000
Fields marked with * are mandatory.
Technical Specifications
EngineSingle cylinder, Naturally Aspirated, Water Cooled
TypeDirect Injection, Electronic Fuel Injection Engine
Displacement395 cc
Max. Power7 Kw (9.4 hp) @ 3400 rpm
Max. Torque23.5 Nm @ 2400 rpm
Clutch TypeMulti Disc, Wet Type
Gear Box TypeConstant Mesh
Gears4 Forward, 1 Reverse
FrontHelical compression & damper with hydraulic telescopic shock absorber
RearRubber compression & damper with hydraulic telescopic shock absorber
StreeingHandle Bar Type
BrakesDrum brakes hydraulically actuated internal expanding shoe type
Tyre Size4.50-10, 8PR
System Voltage12V DC
Battery Rating50 Ah
Wheel Base2100 mm
Max. Length3100 mm
Max. Width1480 mm
Max. Height1700 mm
Min. Ground Clearance245 mm
Cargo Box Dimensions (LxWxH)1660 x 1400 x 285 mm
GVW995 Kg
Sitting CapacityDriver Only
Fuel Tank8 Kg
Maximum Speed50 Km/hr
