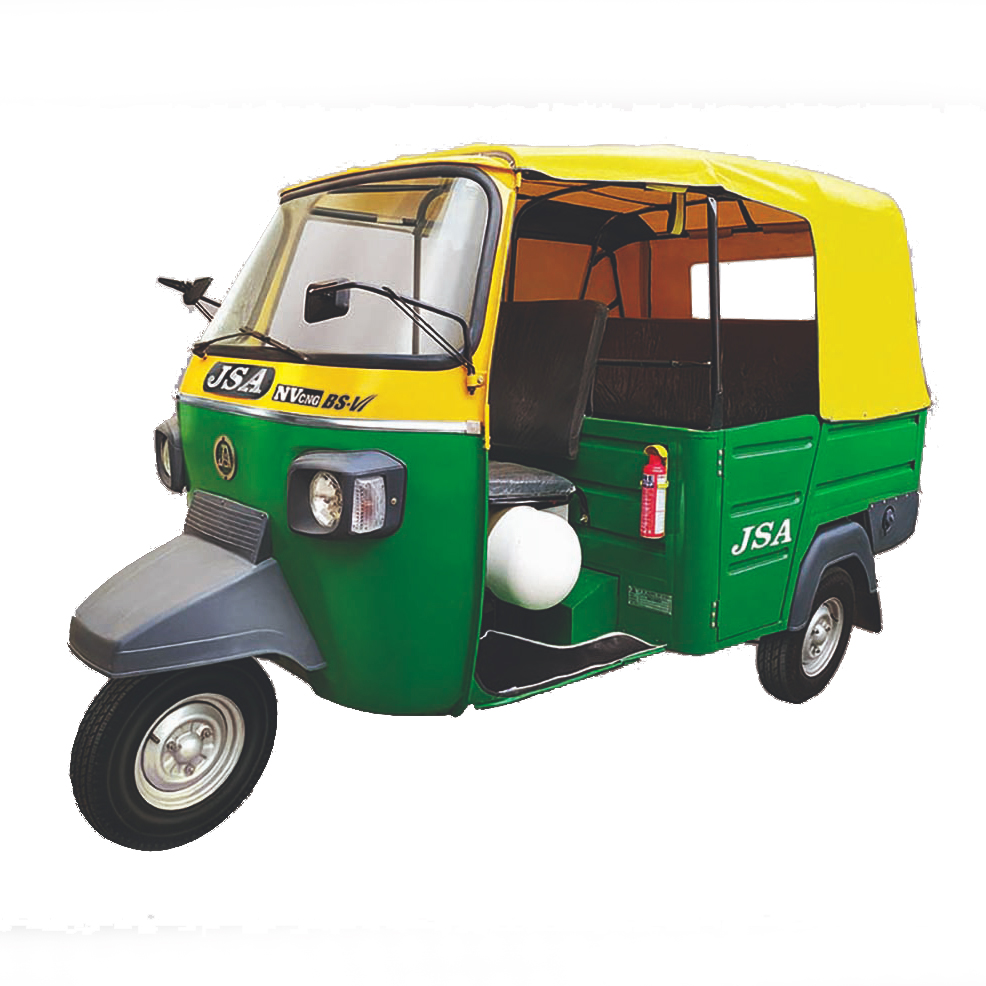

JSA NV CNG PASSENGER(BS6) is a perfect mode of travel for all types of passengers on the road. Powered by a G 400 water-cooled engine, it reduces the usage of fuel and increases the travel period by a long span. Created with regard to decreasing pollution, it runs on CNG-based ecosystem friendly fuel.
Also, it is available in 2 variants of seating capacity : 3+1 & 5+1, based on the user's choice.

Technical Specifications
TSF NV CNG Pass
Emission Standards BS-VI
Seating Capacity 3+1  &  5+1
Brakes Drum
Suspension Front: Coil Spring; Rear: Rubber Damper
Driving Mode Centre Handlebar
Battery Lead Acid 12 V
Starting System Electric Push Button
Fuel Used CNG
Average 30 Kmpl
Fuel Tank Capacity 40 Ltr. Water Capacity
Engine Type G 400 W VI CNG
Bore 86
Stroke 68
Cubic Capacity 395
Max Output 7.0 Kw
Max RPM 3850 RPM
Max Speed 50 Kmph
Gear Box Constant Mesh
Clutch Wet Multiplate
Kerb Weight 500 Kg
Gross Vehicle Weight 3+1 Seating: 800 Kg  | 5+1 Seating: 950 Kg
Min. Ground Clearness 155 mm
Wheel base 1950 mm
Rear Wheel Track 1250 mm
Overall Length 3+1 Seating: 2950 mm  | 5+1 Seating: 3065 mm
Overall Width 3+1 Seating: 1450 mm  | 5+1 Seating: 1470 mm
Overall Height 3+1 Seating: 1800 mm  | 5+1 Seating: 1890 mm
