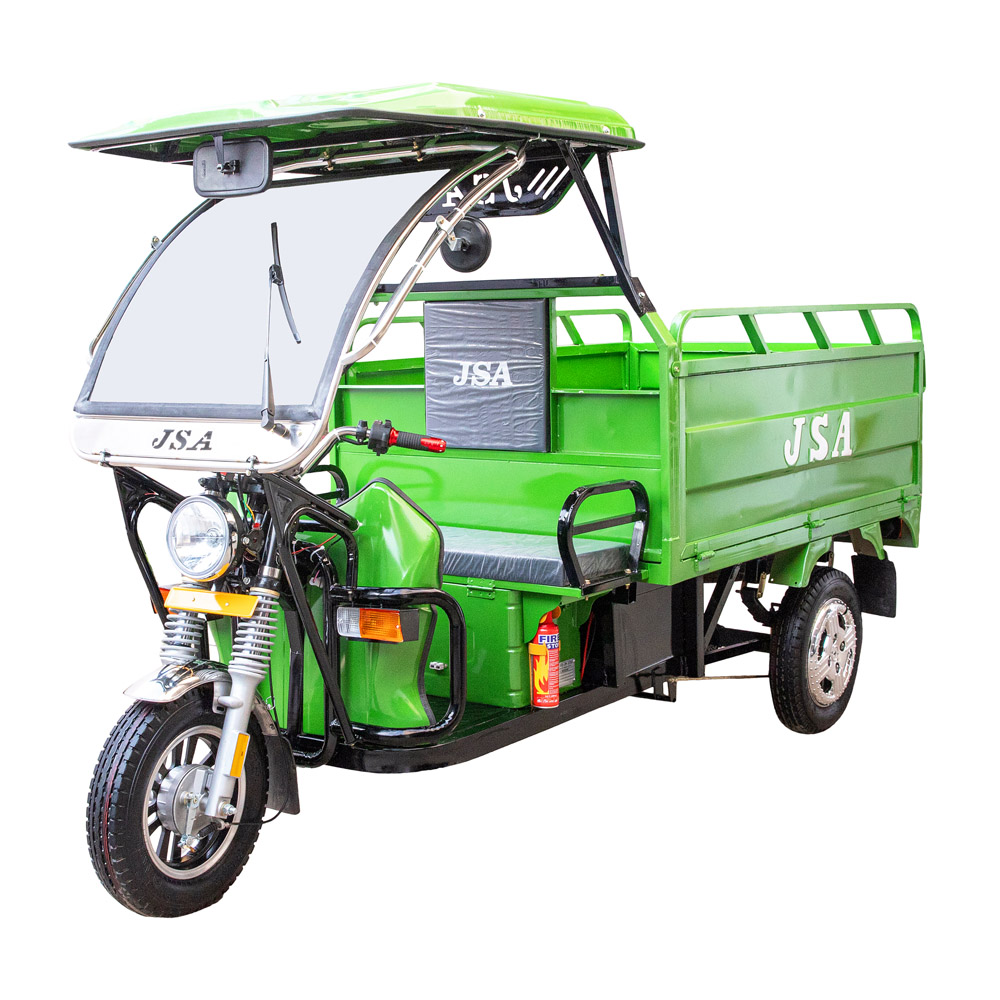

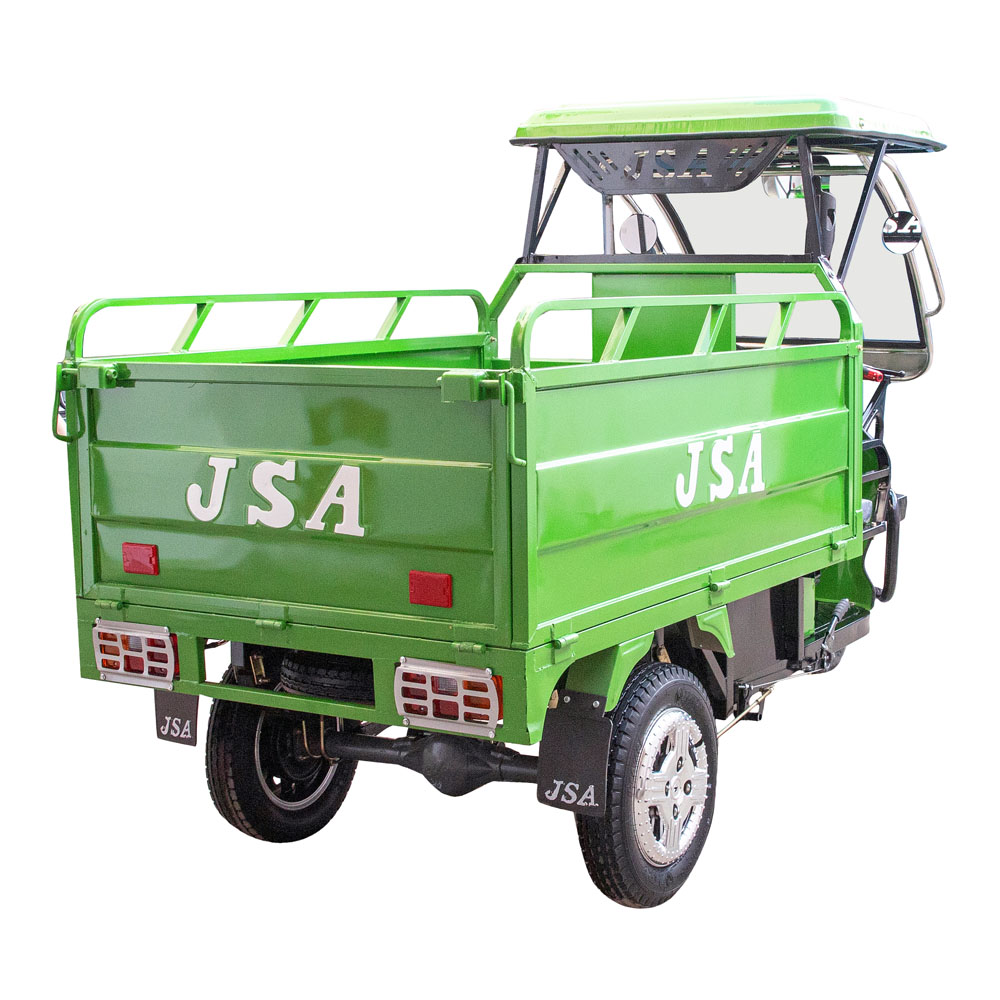

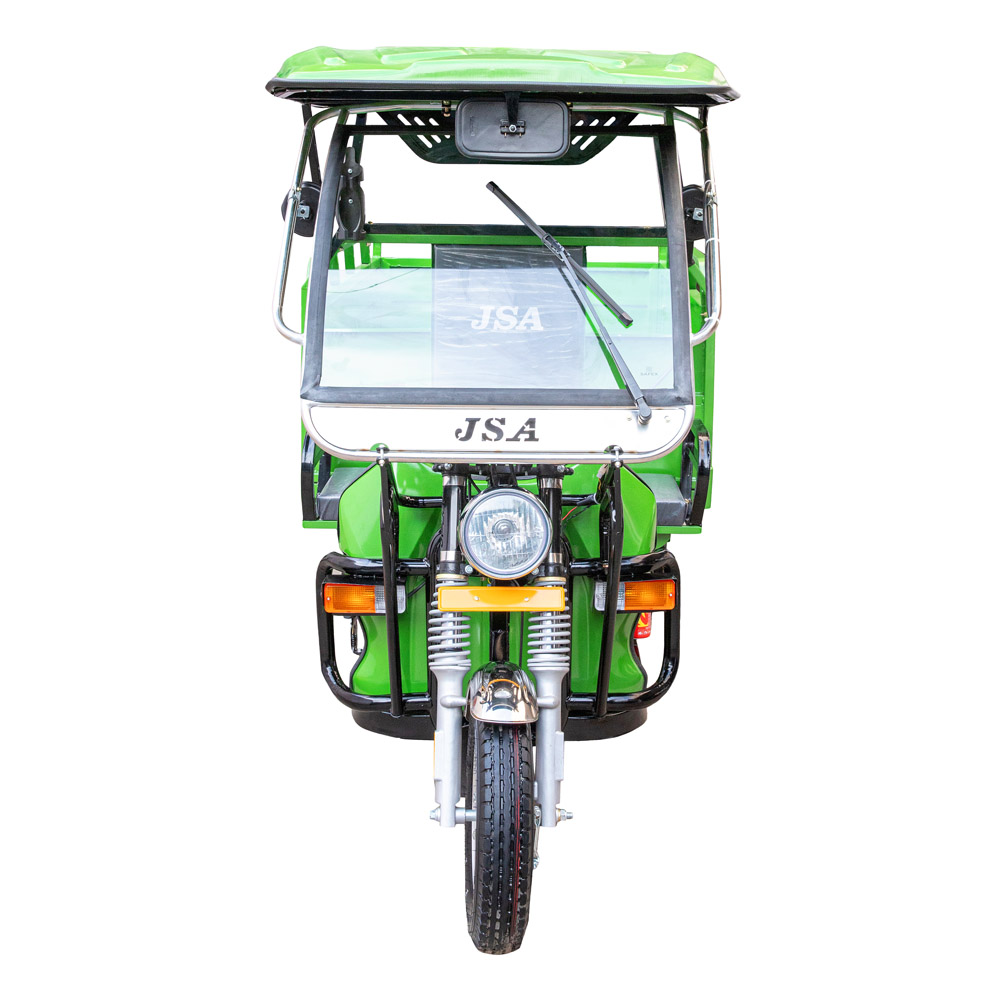

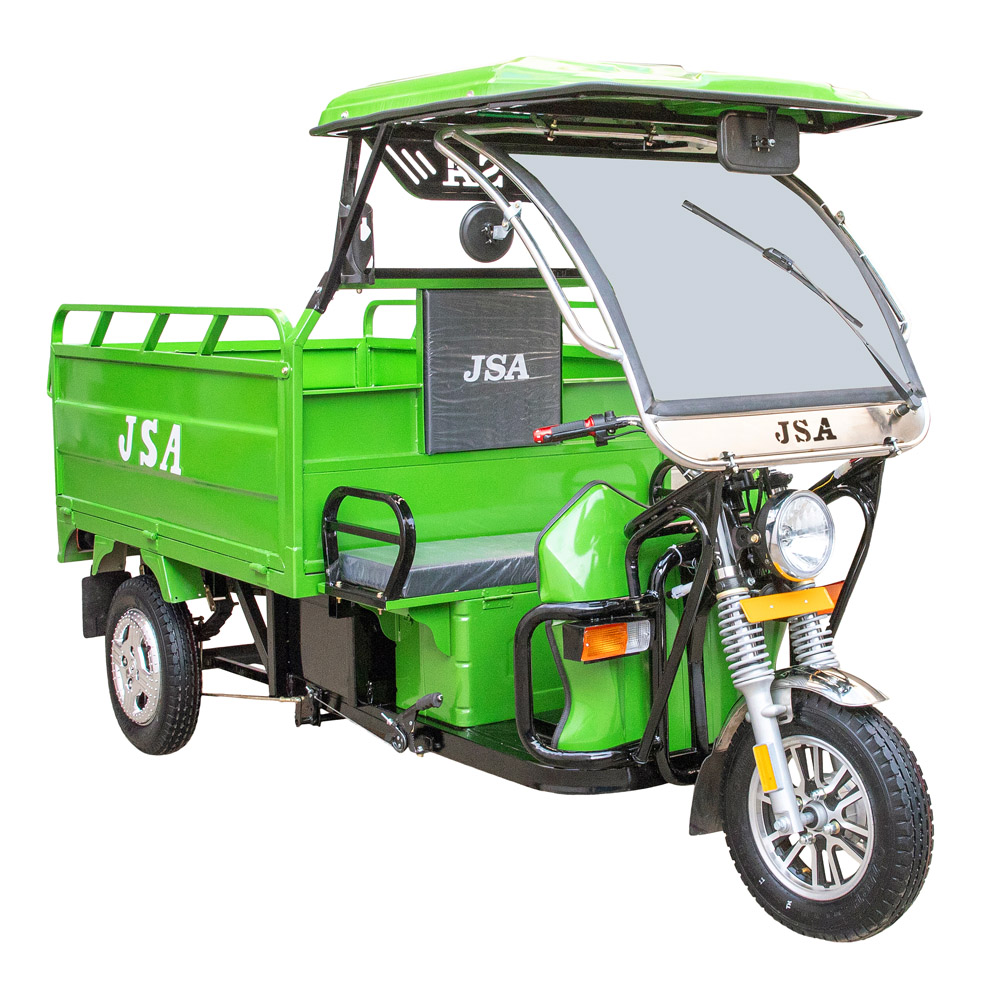

JSA E-Cart Load Carrier

Product Enquiry

Enquire us about anything related to this product. We'll do our best to get back to you as soon as possible.

Max. Characters:
72/1000
Fields marked with * are mandatory.

As an affluent manufacturer, exporter and supplier in this domain, we are instrumental in offering a high quality range of Load Carrier Auto. The provided auto is manufactured at our well-equipped manufacturing unit with the use of optimum quality components and the pioneering technology in line. The provided auto is basically used for carrying goods and services. It is a best means of transporting goods in short distances. Moreover, this Load Carrier Auto is made available in different specification at reasonable prices to the clients.

Technical Specifications
Long Member Size (mm)1050 mm
Number of Cross Members2
Type / DescriptionTelescopic fork in front & Leaf spring in rear
SpringRear: Leaf Spring
Shock AbsorbersFront hydrollic telescopic type
Service BrakeMechanical expandable brake shoe type
Front (Disc/Drum)Drum
Rear (Disc/Drum)Drum
Total Braking Area (cm²)Fr: 70.35cm² | Rr:191.93cm² | Total: 262.28cm²
Parking BrakeMechanical hand lever operated acting on rear wheels
Wheel Rim SizeZim, Koyo-2.15J x 12, JK-2.75 x 12
Tyre Size Designation Including Ply Rating90/90-12 (Ceat)
Speed IndexB,J
Load Index / Rating64, 54
Tyre TypeTube Tyre
Laden Type Pressure (Kg/cm²)250 kPa
System Voltage (V)48V (12V*4) DC
Battery (Ah)Exide
