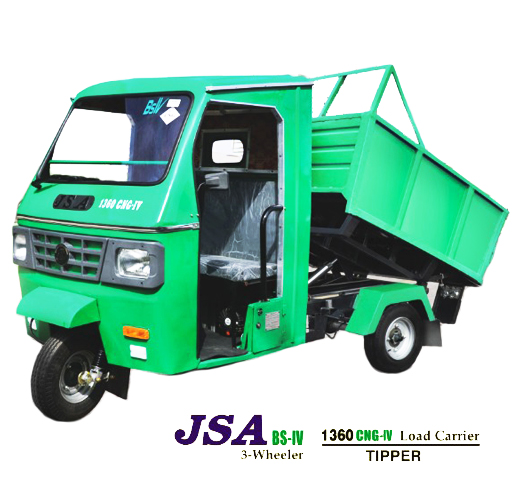

JSA 1360 CNG-IV Load Carrier

JSA 1360 CNG IV LOAD CARRIER, TRIPPER
JSA-1360-DIV-LOAD-CARRIER JSA-1360-DIV-LOAD-CARRIER JSA-1360-DIV-LOAD-CARRIER JSA-1360-DIV-LOAD-CARRIER

Product Enquiry

Enquire us about anything related to this product. We'll do our best to get back to you as soon as possible.

Max. Characters:
72/1000
Fields marked with * are mandatory.

As an affluent manufacturer, exporter and supplier in this domain, we are instrumental in offering a high quality range of Load Carrier Auto. The provided auto is manufactured at our well-equipped manufacturing unit with the use of optimum quality components and the pioneering technology in line. The provided auto is basically used for carrying goods and services. It is a best means of transporting goods in short distances. Moreover, this Load Carrier Auto is made available in different specification at reasonable prices to the clients.

Technical Specifications
Wheel Base2280 mm
Wheel Track1310 mm
Min. Ground Clearance150 mm
Overall Length3680 mm
Overall Width1550 mm
Overall Height2450 mm
Gross Vehicle Weight1350 Kg.
Seating Capacity1 + 1
Type4 stroke water cooled
Number of CylindersSingle
Displacement510 cc
Torque33 Nm
Gear BoxConstant Mesh 4 forward & 1 reverse
ClutchDry, Single Plate
BatteryExide 12V, 55AH
Headlight12V, 35/35W, Twin
Indicators12V, 21W, Twin in front and back
Tail/Brake Light12V, 21/5W
Tyre Size: Front & Rear4.50x10, 8 Ply Cross Ply
Tyre Pressure Front3.23 kg/cm2 46 PSI
Tyre Pressures Rear3.80 kg/cm2 54 PSI
FrontHydraulic telescopic shock absorber with coil spring
RearHydraulic telescopic shock absorber with leaf spring
Fuel Tank2.75 Ltr.
Engine Oil1.75 Ltr.
Gear Oil1.5 Ltr.
CNG Cylinder45 Ltr. Water/ 8 kg CNG
Length2140mm
Width1510mm
Height730m
Loading Capacity3 Cubic Meters
Tipping Angle45 Degrees
Tipper OperationHydraulic Lifting Pump
More milage: 25 Kms (CNG)
Strong front suspension
Multi focal head lamp
Adjustable draining sheet.
Powerful back lights.
Imported CNG system.
Attractive meter display.
Bigger wheel track to provide balance.
