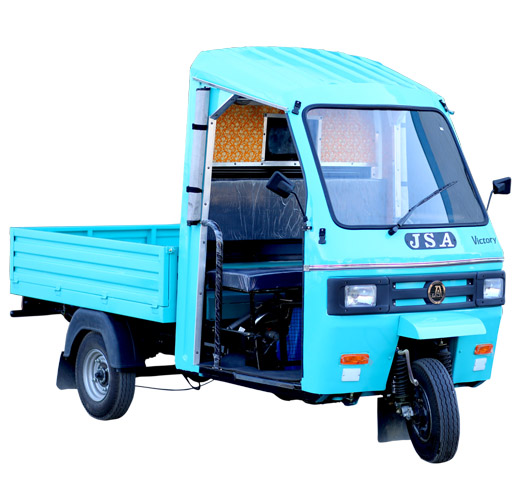

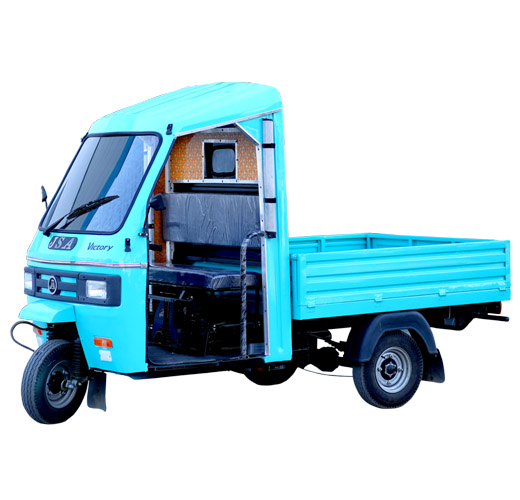

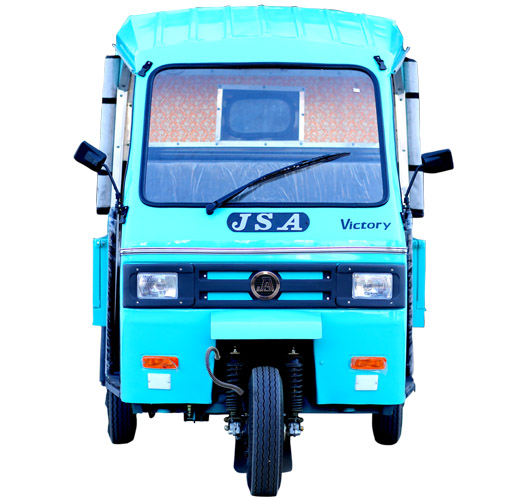

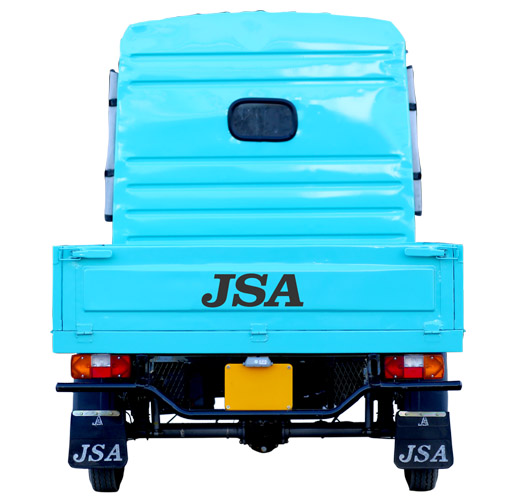

JSA Victory 1000 D-IV Load Carrier
JSA Victory 1000 D-IV Load Carrier JSA Victory 1000 D-IV Load Carrier JSA Victory 1000 D-IV Load Carrier JSA Victory 1000 D-IV Load Carrier

Product Enquiry

Enquire us about anything related to this product. We'll do our best to get back to you as soon as possible.

Max. Characters:
72/1000
Fields marked with * are mandatory.

JSA Victory 1000 D-IV

Technical Specifications
Engine
TypeSingle cylinder greaves G435A III, 4 Stroke, Air Cooled Bharat-IV Diesel Engine
Number of cylindersSingle
Bore86 mm
Stroke77 mm
Compression Ratio19:1
Displacement436cc
Max. Power5.52Kw at 3600 RPM (7.4 H.P)
Max. Torque18 N/m
Clutch & Gear
Clutch TypeMulti Disc, Wet Type
Gear Box TypeCoantant Mesh (4 Forward, 1 Reverse)
Steering & Brakes
StreeingHandle Bar Type
BrakesDrum brakes hydraulica;;y actuated internal expanding shoe type
Suspension
FrontHydraulic telescopic shock absorber with coil spring
RearHydraulic telescopic shock absorber with leaf spring
Wheels & Tyres
Tyre Size4.50-10, 8PR (Cross Ply)
Tyre Pressures Front3.23 kg/cm2 46 PSI
Tyre Pressures Rear3.80 kg/cm2 54 PSI
Dimensions
Wheel Base1910 mm
Max. Length2865 mm
Max. Width1420 mm
Max. Height1755 mm
Wheel Track1240 mm
Min. Ground Clearance150 mm
Electrical System
System Voltage12V (DC)
Battery Rating50 AH
Weight
Gross Vehicle Weight1030 Kg
Capacity
Fuel Tank7.25 ltr
Engine Oil1.75 ltr
Gear Oil2.0 ltr
Seating Capacity1 + 1
