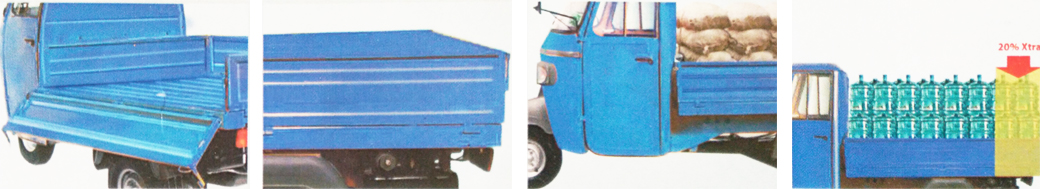

JSA NV Pickup King Three Wheeler Load JSA NV Pickup King Features

Product Enquiry

Enquire us about anything related to this product. We'll do our best to get back to you as soon as possible.

Max. Characters:
72/1000
Fields marked with * are mandatory.

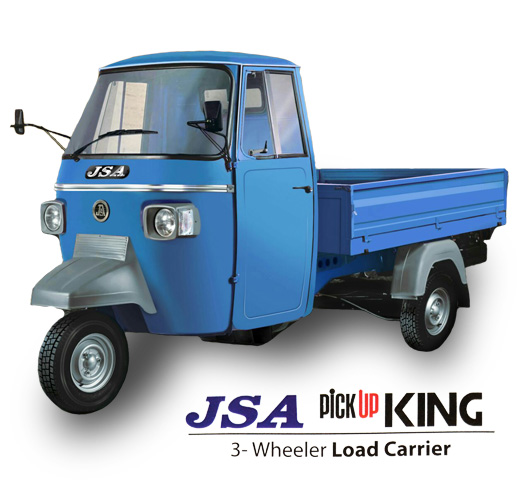

JSA NV Pickup King

Technical Specifications
Engine
TypeSingle cylinder, Naturally Aspirated Air Cooled
Displacement436cc
Max. Power7.5 HP @ 3600rpm +/- 50rpm
Max. Torque18 N/m/ @ 2200-2400 rpm
Clutch & Gear
Clutch TypeMulti Disc, Wet Type
Gear Box TypeCoantant Mesh (4 Forward, 1 Reverse)
Steering & Brakes
StreeingHandle Bar Type
BrakesDrum brakes hydraulica;;y actuated internal expanding shoe type
Suspension
FrontHelical spring with hydraulic telescopic shock absorber
RearRubber compression spring with hy draulic telescopic shock absorber
Wheels & Tyres
Tyre Size4.50-10, 8PR (Cross Ply With Tube)
Dimensions
Wheel Base2100 mm
Max. Length3145 mm
Max. Width1490 mm
Max. Height1635 mm
Rear Track1260 mm
Min. Ground Clearance240 mm
Cargo Dimensions1660 mm x 1400 mm
Electrical System
System Voltage12V (DC)
Battery Rating50 AH
Weight
GVW975 Kg
Kerb Weight438 Kg
Rated Payload537 Kg
Capacity
Fuel Tank10.25 ltr
Performance
Maximum Gradability22.16%
